- Product Description
-
Safety
safety design &multi-protection
Intelligence
temperature management
Outdoor
lP54 protection level
Easy Installation
modular assembly
All in one
3C,AC&DC combination

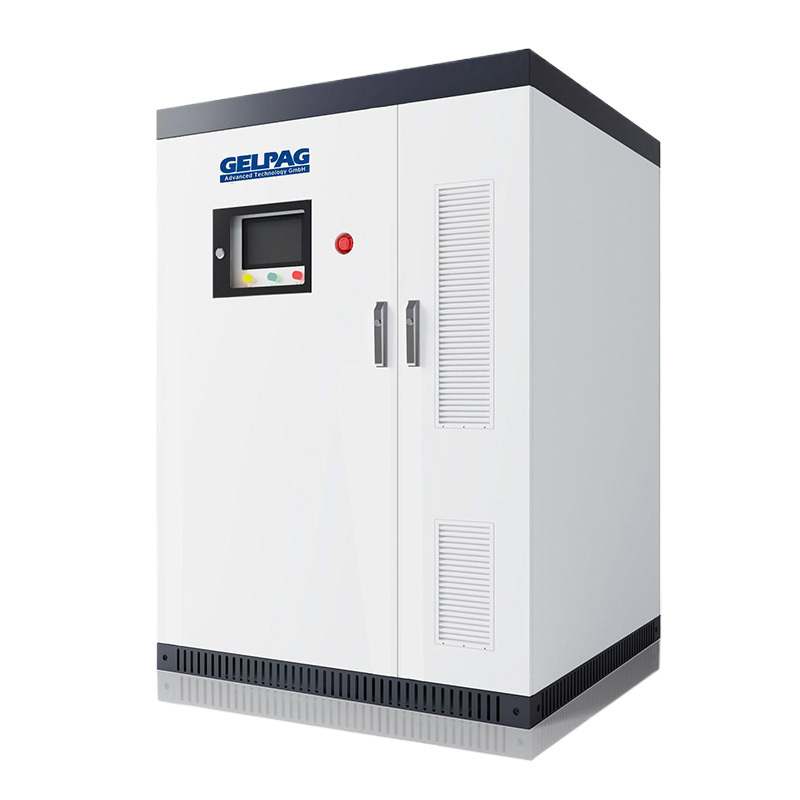

GES-215CAB Technical Specifications
Model GES-215CAB DC Data Battery type LFP280 Battery Module 1P16S System 1*1P240S/15 Capacity 215.04kWh Voltage 672~876V Charge & Discharge Rate 0.5C AC Data Rated Power 100KVA Voltage 400Vac/230Vac(-20%~15%) Power Frequency 50*60Hz±2Hz AC Access Method 3P4W+PE Power Factor -1~1 Max THD <3% System Data Dimension (H*W*D) 2400x1800x1400mm Weight 2400kg Protective class IP54 Operating temperature -20~55℃ Running noise ≤75dB(A) Cooling method Air conditioner Fire protection system Gas fire protection & Perfluorohexanone Communication CAN/RS485 Scalability 8 sets Safety
safety design &multi-protection
Intelligence
temperature management
Outdoor
lP67 protection level
Easy Installation
modular assembly
All in one
3C,AC&DC combination
GES-215L Technical Specifications
Model GES-215L DC Data Battery type LFP280 Battery Module 1P16S System 1*1P240S/15 Capacity 215.04kWh Voltage 672~876V Charge & Discharge Rate 0.5C AC Data Rated Power 100KVA Voltage 400Vac/230Vac(-20%~15%) Power Frequency 50*60Hz±2Hz AC Access Method 3P4W+PE Power Factor -1~1 Max THD <3% System Data Dimension (H*W*D) 1950x1400x1350mm Weight 2350kg Protective class IP67 Operating temperature -20~55℃ Running noise ≤75dB(A) Cooling method Liquid cooling Communication CAN/RS485 Scalability 8 sets
