- Product Description
-
Intelligent and efficient
Intelligent temperature control system, efficient thermal management, extended battery life
Full life cycle management
Highly integrated
All in one integrated technology, stable partition management of AC and DC compatments
Compact structure, beautiful appearance, flexible configuration, wide power range
Safe and reliable
Multi-sampling point coverage, full data monitoring, to ensure system security
Use of mature balancing technology
Intelligent detection and warning function, pack-level security warning
Convenient economy
Integrated transportation, simple construction, to meet a variety of application scenarios
More than 10 years of service life under standard working conditions
Variety of operation mode choice, improve revenue
Technical Specifications
Item
Specification
DC
Cell Type
LiFePO4
Cell Specification
3.2V,100Ah
Configuration
1P240S
Rated Capacity
76.8kWh
Nominal Voltage
768Vdc
Voltage Range
680~864Vdc
Chrg Current
Rated
50A
Max.
100A
DsChrg Current
Rated
50A
Max.
100A
AC
Cycle Index
≥6000 times (0.5C,90%DOD,70%SOH)
Nominal Grid Volage
230/400V,3P+N+PE
Rated Grid Frequency
50Hz
Rated Output Power
60kW
Max. Output Current
86A
Power Factor(cos Φ)
0.8cap~0.8ind
System
System Efficiency
89%
Parallel number of cabinets
Max.10parllel
IncomingAnd Outgoing Line Method
Lower Outgoing Line
Communication
Battery Communication
CAN
Data Communication
Ethernet/RS485
Air Conditioner
RS485
Protection
DC/AC Undervoltage/Overvoltage Protection
✓
DC/AC Overcurrent Protection
✓
SOC Alarm
✓
Cell Undervoltage Protection
✓
Overload Protection
✓
High Temperature Alarm
✓
Smoke Detector
✓
Fire Extinguisher Plant
✓
DC Insurance
✓
AC Lightning Protection
✓
Working Environment
Humidity
0~95% (Non-condensing)
Storage Temperature
-20℃~+35℃
Operation Temperature
0℃~+45℃
Altitude
≤3000m
Basic Parameter
Dimension(W*D*H
1000*1160*2200m
Weight
1.8T
IP Rating
IP54
Cooling Method
Air-Cooling

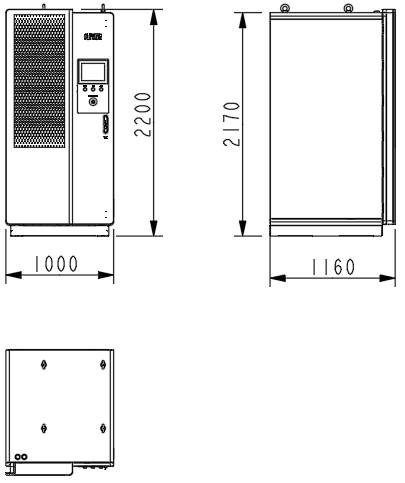

INSTALLATION DIMENSIONS

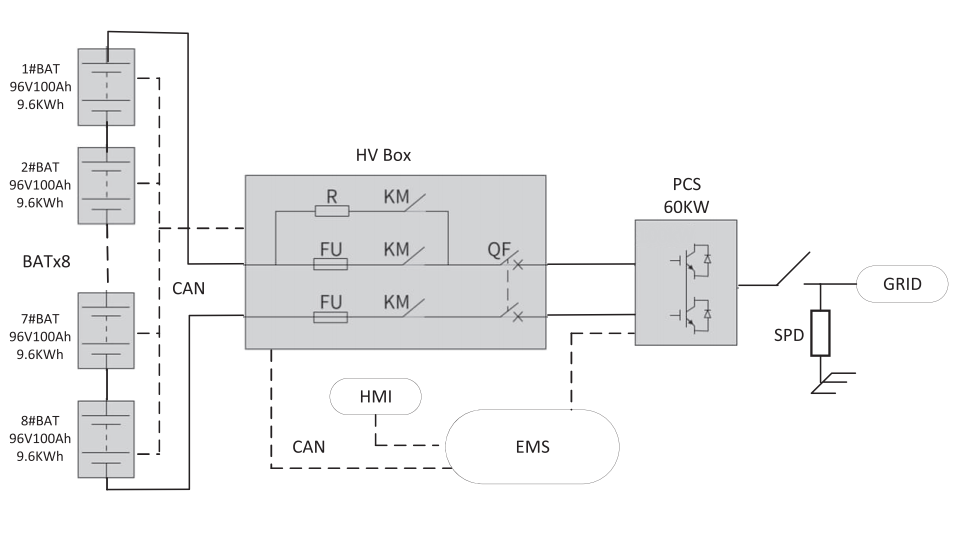

ELECTRICAL TOPOLOGY DIAGRAM
