GEL-FCDC 360KW

• Advanced dynamic power allocation • Max. 500A output current/connector with liquid cooling system • Flexible configuration – Natural & Liquid Cooling User Unit integrated in one system • User-friendly Cable Management System • Dynamic status display

Email:

info@gelpag.com

TEL

+49 (0)6206 95088 23

Message

For more details, please Contact!

Product application

Classification

EV Charger

keyword

Product Description

Main Features

• Advanced dynamic power allocation

• Max. 500A output current/connector with liquid cooling system

• Flexible configuration – Natural & Liquid Cooling User Unit integrated in one system

• User-friendly Cable Management System

• Dynamic status display

Specifications (Liquid-Cooling Connector)

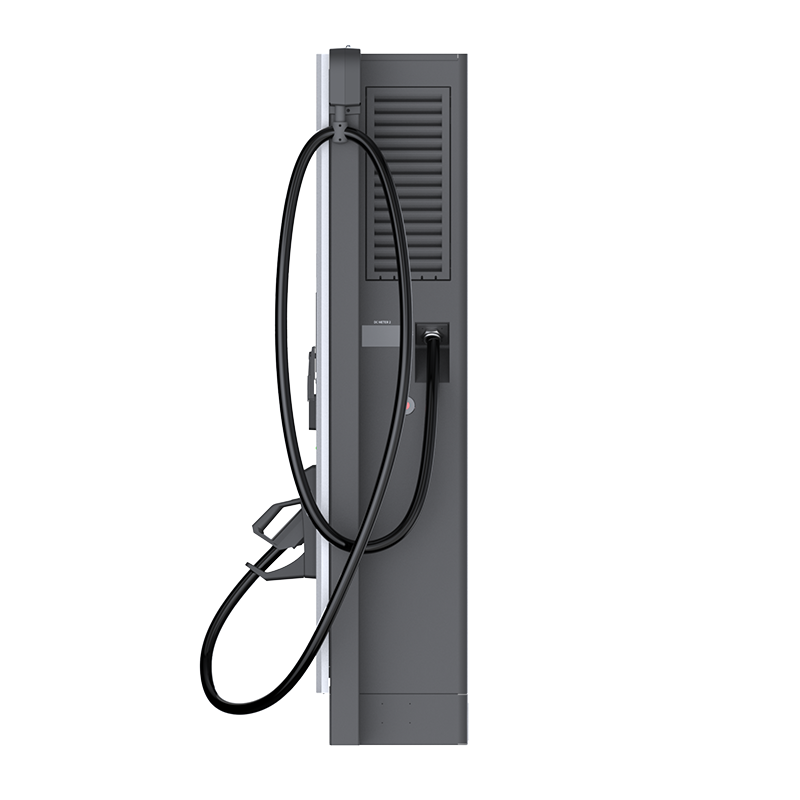

User Unit
Rendering
Power Input		Auxiliary power supply: 230Vac±10%, single-Phase, 50/60 Hz, L+N+PE
Output Interface		2 × CCS2 (Liquid-cooling)	1 × CCS2 (Liquid-cooling)	1 × CCS2 (Liquid-cooling) + 1 × CHAdeMO (Natural-cooling)
Output Power		360kW max.
Output Voltage		200-1000Vdc	200-1000Vdc	CCS2: 200-1000Vdc, CHAdeMO: 200-500Vdc
Output Current		500A max./connector	500A max.	CCS:500A max., CHAdeMO: 200A max.
Simultaneous Charging		Yes(400A max./connector simultaneous charging)	N/A	Yes
Display		10.4-inch LCD touch screen
Support Language		English (Other languages available upon request)
Button and Switch		Emergency button & 4 x Mechanical buttons for screen operation
Authentication		RFID Card, QR code, Credit Card (Optional)
RFID Reader		ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Network Interface		4G
Protocol (EVSE&Backend)		OCPP 1.6J
Protocol (EVSE&EV)		DIN 70121, ISO 15118
Operating Temperature		-30℃ to 50℃
Storage Temperature		-30℃ to 70℃
Humidity		5% to 95% no condensation
Altitude		≤2000m above sea level
IP Rating		IP55
IK Rating		IK10 (Screen is IK08, Payment terminal is IK07)
Charger Cooling		Forced Air
Charging Cable Length		5m

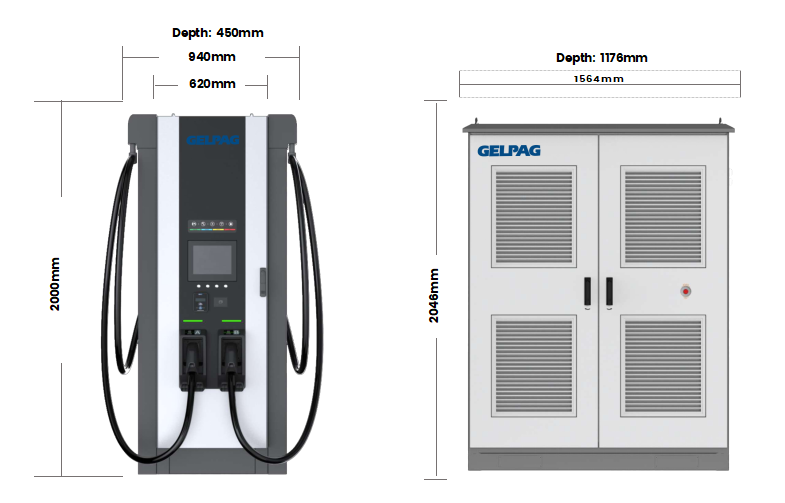

Dimensions (HxWxD)	including cable management system	2000940440mm	2000780440mm	2000940440mm
	excluding cable management system	2000620440mm	2000620440mm	2000620440mm
Weight	including cable management system	250kg	235kg	260kg
	excluding cable management system	220kg	220kg	225kg
Installation		Ground mounting

GEL-FCDC 360KW

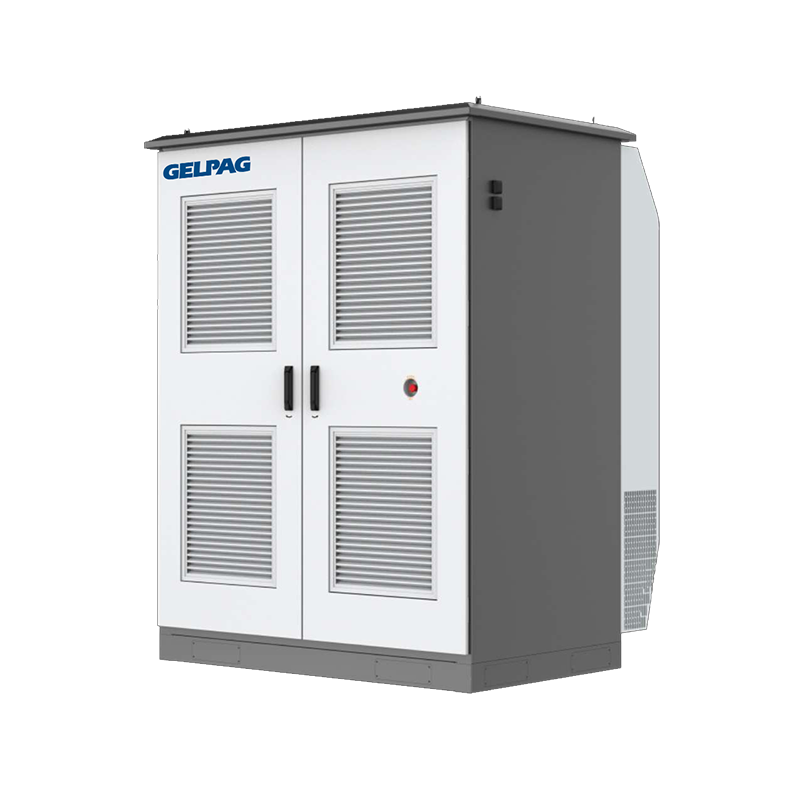

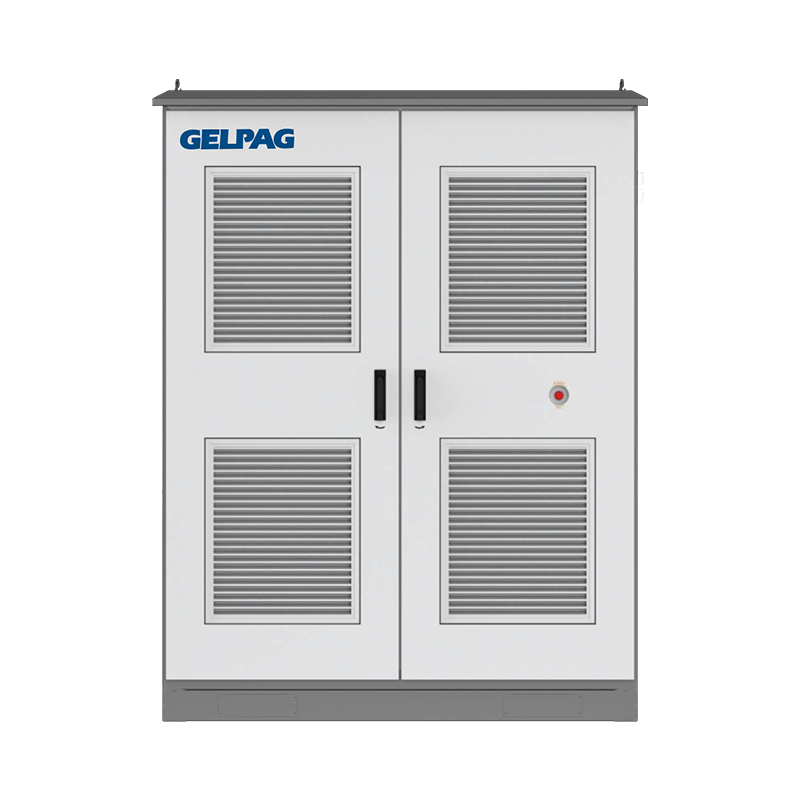

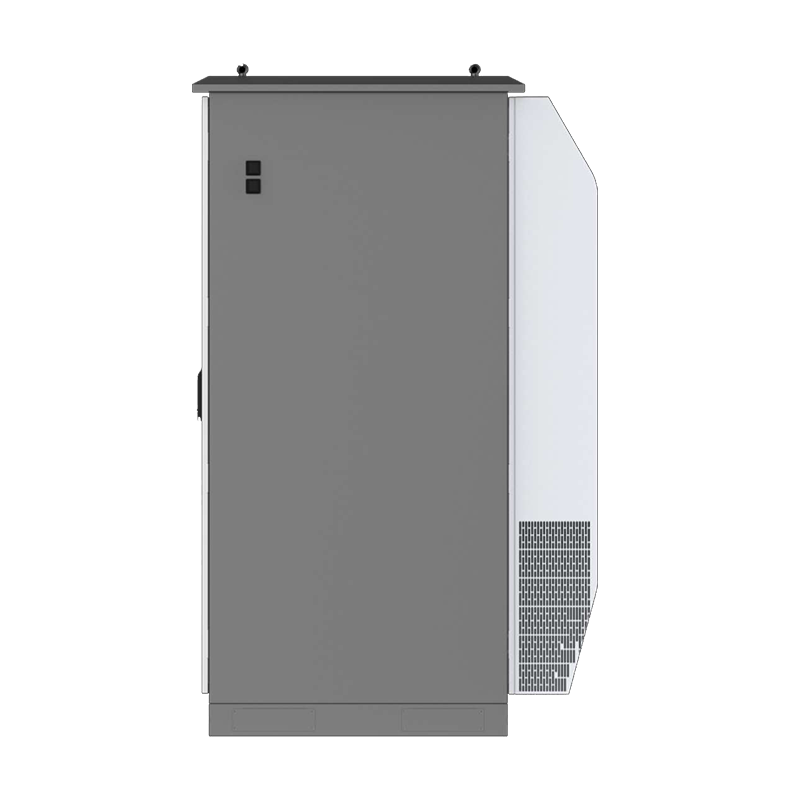

Power Cabinet
Input Rating	342-456Vac, 3 phases, 50/60Hz, 2 x (L1+L2+L3+N+PE)
Power Factor	≥0.99 @ Full Load
Efficiency	≥94% @ Full Load (Peak)
Grid Type	TN-S, TN-C, TN-C-S, TT
Output Power	360kW max.
Output Voltage	200-1000Vdc
Output Current	500A max./channel
Output Channel	6 channels max.
Button and Switch	Emergency button
Network Interface	4G+Wi-Fi+Ethernet
Operating Temperature	-30℃ to 50℃


Storage Temperature	-30℃ to 70℃
Humidity	5% to 95% no condensation
Altitude	≤2000m above sea level
IP Rating	IP55
IK Rating	IK10
Cooling	Forced Air
Dimensions (WxHxD)	156420461176mm
Dimensions (WxHxD)	156420461176mm
Weight	Approx. 840kg (excluding power modules )
Installation	Ground mounting
Certificate	(ongoing)CE-RED, TR25
