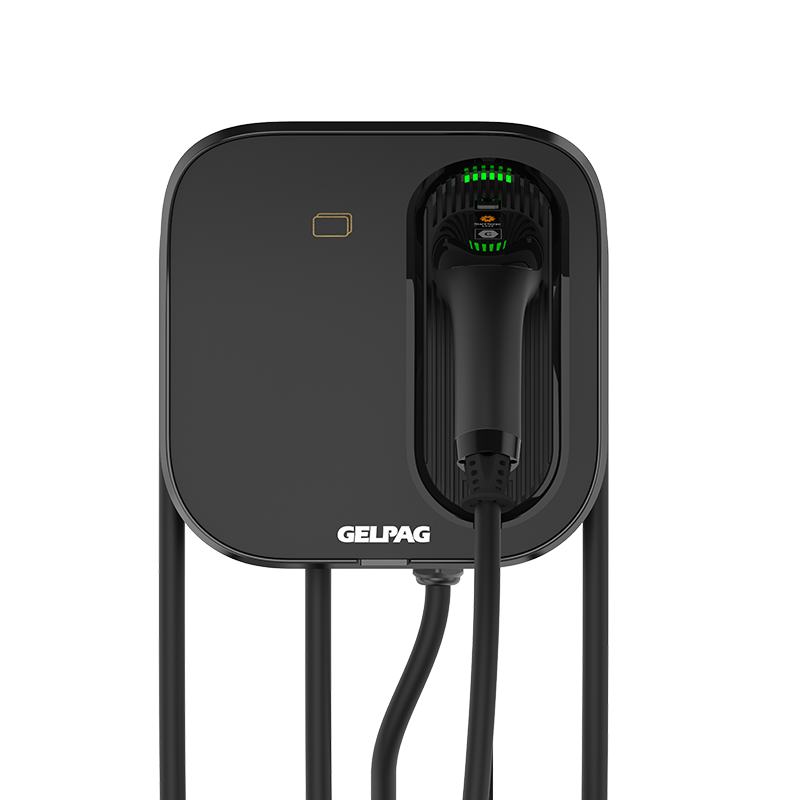

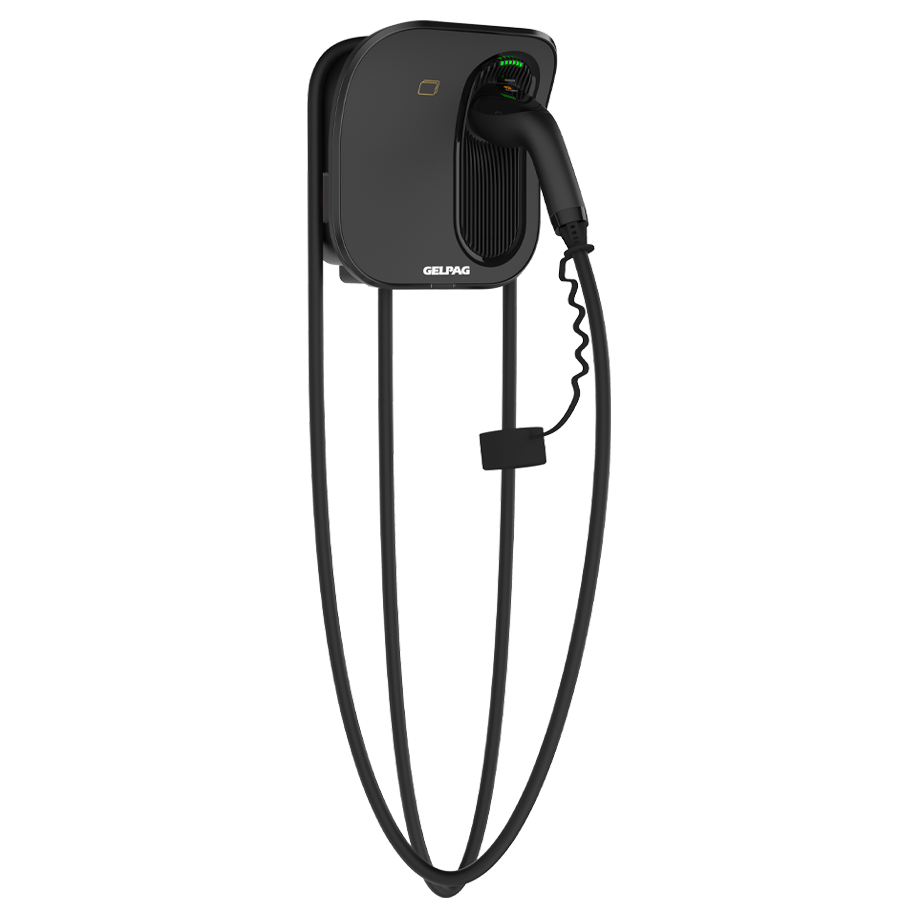

GEL-HMRES 7kw 11kw 22kw

l Multiple electrical protection functions for user safety. l Equipped with Bluetooth for easy commissioning. l Connect any backend based on OCPP 1.6J protocol. l TR25 Certified product.

Email:

info@gelpag.com

TEL

+49 (0)6206 95088 23

Message

For more details, please Contact!

Product application

Classification

EV Charger

keyword

Product Description

Main Features

l Multiple electrical protection functions for user safety.

l Equipped with Bluetooth for easy commissioning.

l Connect any backend based on OCPP 1.6J protocol.

l TR25 Certified product.

Specifications

General Information
Charging Mode	Mode 3 (IEC 61851-1)
Input/Output Power&Current Rating	7kW/32A max.	11kW (3.5kW single phase)/16A max.
Input/Output Voltage Rating	184-264Vac, single phase, 45~65Hz, L+N+PE	184-264Vac, single phase, 45~65Hz, L1+N+PE 400Vac±15%, Three phases 45~65Hz, L1+L2+L3+N+PE
Grid Type	TN-S, TN-C-S, TT, IT(L1+L2 230Vac Single phase, optional)	TN-S, TN-C-S, TT, IT(L1+L2 230Vac Single phase, optional)
Charging Interface	IEC 62196-2 Type 2 tethered plug (Case C)
Metering	Onboard metering chip, Accuracy: 1%
Internal RCD	Type A RCD + 6mA DC
Protection	Overcurrent, Overvoltage, Undervoltage, Residual current, Over temperature, Ground fault(optional), Integrated surge protection
User Interface
Display & Support Languages	No Display
Status Indication	LED indicator
Bluetooth	Bluetooth 5.0
Button & Switch	With emergency switch, with rotary switch inside(used for setting output current limitation)
User Authentication	Free Charge + RFID card + APP(optional)
RFID Reader	ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Communication
Network Interface	4G, Wi-Fi, Bluetooth, Ethernet, RS485
Protocol (EVSE&Backend)	OCPP 1.6J
Protocol (EVSE&EV)	Control pilot
Environmental
Operating Temperature	-30℃ to 50℃
Storage Temperature	-40℃ to 85℃
Humidity	5% to 95% no condensation
Altitude	≤3000m above sea level
Mechanical
IP Rating	IP65
IK Rating	IK10
Cooling	Natural cooling
Charging Cable Length	5m or 7m (optional)
Dimensions (WxHxD)	280280148 mm (Pole: 100* 1210*50mm)
Weight	Approx. 3.75kg
Installation	Wall mounting, Pole mounting (Pole is optional)
Certification and standards
Standards and compliance	IEC 61851-1, IEC 61851-21-2, RED 2014/53/EU, IEC 62955 (RCD), 2014/32/EU(Metering)
Certification	CE-RED, CB, TR25, IMDA, RCM, WPC, NTC, SIRIM(7kW ongoing), NBTC

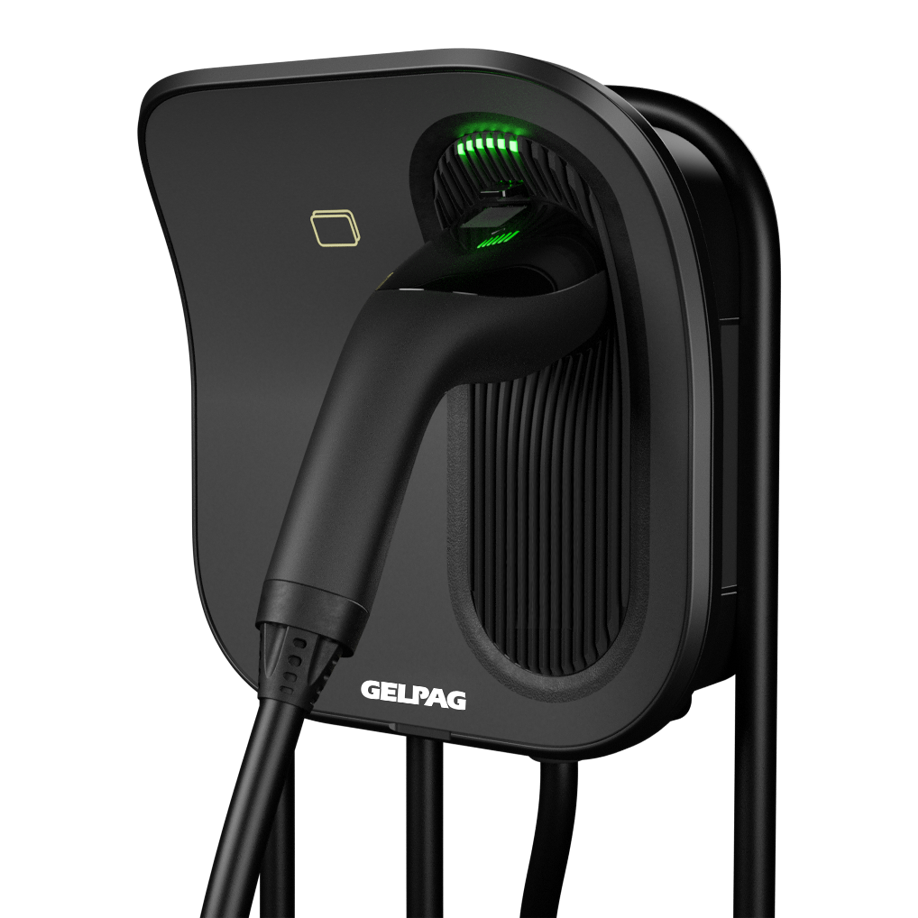

GEL-HMRES 22kw

Main Features

• Excellent industrial design brings pleasant user experience.

• Connect to any backend based on OCPP 1.6J protocol.

• Could connect to Gelpag Peak Controller (optional accessories) via Ethernet to realize local dynamic load management.

Specifications

General Information
Charging Mode	Mode 3 (IEC 61851-1)
Input/Output Power&Current Rating	22kW/32A max.
Input/Output Voltage Rating	340-460Vac±10%, Three phases, 50/60Hz±5%, L1+L2+L3+N+PE (support single phase input)
Grid Type	TN-C-S, TT, IT (L1+L2 187～253Vac)
Charging Interface	Type 2 Electric Vehicle connector complied with IEC 62196-2
Metering	Onboard metering chip, Accuracy: 1%
Internal RCD	Type A 30mA + DC 6mA
Protection	Overcurrent, Overvoltage, Undervoltage, Residual current, Over temperature, Ground fault(optional), Integrated surge protection
User Interface
Display & Support Languages	Digital screen (optional)
Status Indication	LED indicator
Button & Switch	Emergency switch (optional), with rotary switch inside (used for setting output current limitation)
User Authentication	Free Charge + RFID card + APP
RFID Reader	ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Communication
Network Interface	4G, Wi-Fi, Bluetooth(optional), Ethernet, RS485
Protocol (EVSE&Backend)	OCPP 1.6J
Protocol (EVSE&EV)	Control pilot, ISO 15118 (Hardware ready)
Environmental
Operating Temperature	-30℃ to 50℃
Storage Temperature	-40℃ to 85℃
Humidity	5% to 95% no condensation
Altitude	≤3000m above sea level
Mechanical
IP Rating	IP65
IK Rating	IK10
Cooling	Natural cooling
Charging Cable Length	5m
Dimensions (WxHxD)	280280148mm (Pole: 100* 1210*50mm)
Weight	Approx. 6.1kg
Installation	Wall mounting, Pole mounting (Pole is optional)
Certification and standards
Standards and compliance	IEC 61851-1, IEC 62955, IEC 61851-21-2, RCM, LVD 2014/35/EU, RED 2014/53/EU, IEC 62955 (RCD), 2014/32/EU (Metering), RoSH 2.0, REACH
