3×500kW/1075kWh Storage System

The system adopts 0.5MW/1.075MWh energy storage containers (3 sets) for parallel operation, paired with pad mounted boosting to achieve 11kV grid-connected operation.

Email:

info@gelpag.com

TEL

+49 (0)6206 95088 23

Message

For more details, please Contact!

Product application

Classification

Energy Storage

keyword

Product Description

Solution Configuration

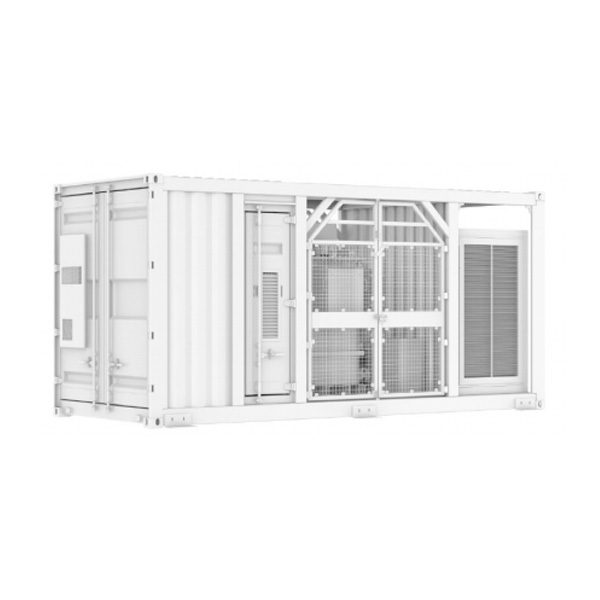

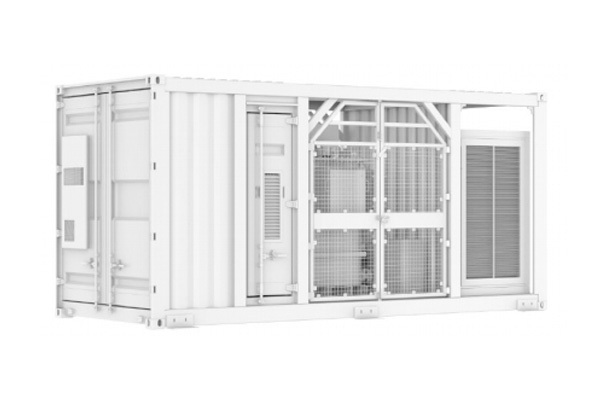

1600kVA Boost Cabin (0.4kV/11kV )

The system adopts 0.5MW/1.075MWh energy storage containers (3 sets) for parallel operation, paired with pad mounted boosting to achieve 11kV grid-connected operation.

1.5MW/3.225MWh
Total system capacity

Solution confiquration
NO. Name	Unit	Quantity	Remarks
20 Feet Energy Storage Container	Sets	3	Single unit equipment specification 0.5Mw/1.075MWh
Boost Cabin	Set	1	1600kVA. 0.4kv/11ky
EMS	Set	1	Energy storage energy management system

Product Specification

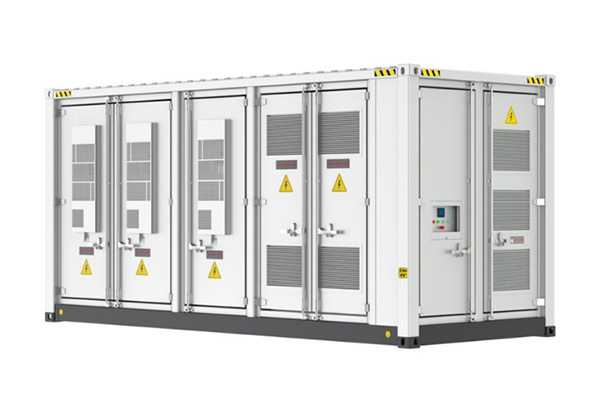

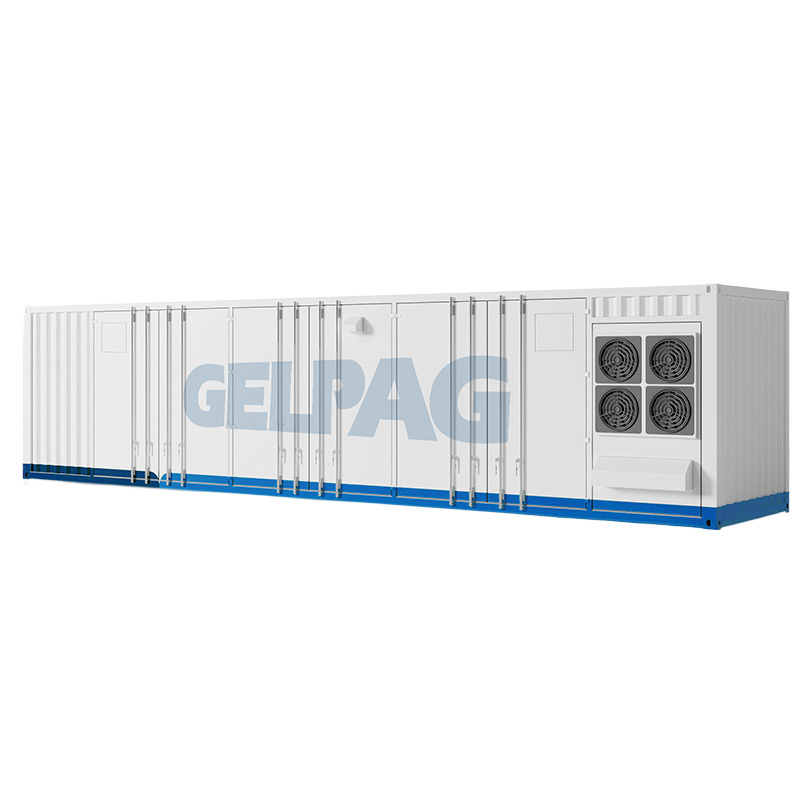

0.5MW/1.075MWh Energy Storage Container (built-in PCS)

PCS Obtained: AS4777.2: 2020 certification
Battery Cluster Obtained: UN38.3, IEC62619, IEC62040, EN61000 certification.
Exporting to AUS/ NZ: IEC62477.

Product Specification
Project	Technical Parameters
Battery System
Cell Type	LFP
Cell Capacity	280Ah
Battery Cluster Formation	1P240S
Rated Voltage	768V
Voltage Range	685~876V
Rated Charging/Discharging Current	140A
Nominal Battery Capacity	215kWh
Number of Battery Clusters	5
System Rated Energy	1.075MWh
PCS (built-in)
Rated Power	500kW
AC Frequency	50/60(-2.5~2.5) Hz
DC Voltage Range	685Vdc-876Vdc
AC Output Voltage	380/400V
Dimension (W×H×D)	11002160800 mm
Certification	AS4777.2: 2020

500kW/1075kWh Product Specification Parameters
Item		Specifications
DC Side	Cell Type	LFP 3.2V / 280Ah
	Battery Pack Configuration	1P16S / 51.2Vdc
	Battery System Configuration	1P240S / 768Vdc
	System Voltage Range	685Vdc ~ 876Vdc
	System Rated Capacity	215kWh * 5
	Rated Charging/Discharging Current	140A * 5
	Maximum Charging/Discharging Current	154A * 5
	Cooling Method	Air Cooling
AC Side	Maximum Output Power	500kW
	Maximum Output Current	154A * 5
	Rated Grid Voltage	230/400Vac, 3P+N
	Rated Grid Frequency	50Hz
	Power Factor	0.8cap - 0.8ind
System Parameters	System Efficiency	85%
	Cabinet Dimensions	605824382896mm (WDH)
	Weight	Approximately 18.0T
	Protection Level	IP54
	Cooling Method	Air Cooling
Protection Measures	DC Side Protection	DC Fuses + Isolation Switch
	Overvoltage Protection	Surge Arrester
	Fire Protection	Heptanofluoropropane/Gas Aerosol Firefighting, Reserved Water Firefighting Interface
	Access Control Protection	Access Control Switch
Operating Envronment	Allowed Working Humidity	0~95%
	Allowed Working Temperature	0~45°C
	Storage Temperature	-20°C~+35°C
	Altitude	≤3000m
Certifications	Battery Cluster	IEC 62619:2022, IEC 62040-1:2017, IEC62040-1:2017/AMD1:2021, EN IEC 61000-6-1/2/3/4
	PCS	IEC62477, IEC62109, AS4777.2
	Container (To be supplemented)	CE-LVD: 62477, IEC61000, UN3536
